HEDRA
DOUBLE-WALLED FUEL CUBES
1,040 - 10,350 LITRES
.BETTER FUEL LOGISTICS. TOGETHER
HEDRA TANKS
- Diesel
- Gasoline
- Lubricants
- Solvents
STANDARD FEATURES
- Designed for the safe storage and transportation of dangerous goods. Meets UL-142, ULC-S601 & UN-31AY compliance as standard.
- Double-walled tank construction consists of a 4mm primary steel tank and a 4mm secondary steel tank.
Baffled internally for structural integrity and to reduce product movement. - Accessible and removable tank manway for internal tank maintenance and cleaning.
- Recessed spill box/pump cabinet with pump
mounting bracket. All housed under heavy duty lockable lid for additional fuel security. - Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e: generators).
- Complete with aluminium gauged dipsticks,
1 x galvanized updraft vent breather system and multiple port fittings. - Air pressure tested prior to leaving our factory.
- Mobile and modular design allows for ease of transportation.
- 400 Micron thickness ‘WHITE’ paint finish as standard. Other colour options available upon request.
- Appropriate safety labels and decals supplied as standard.
- Tie down/lifting points at each corner.
- 2 x forklift pockets to all sides

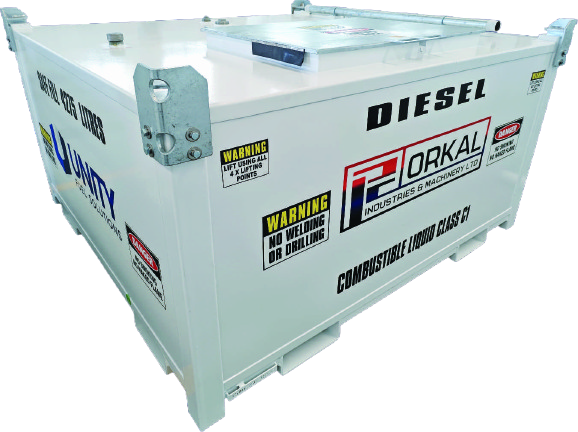

HEDRA ‘Cube Style’ Double Walled
Fuel Tanks are a value-engineered
solution for the storage and dispensing
of diesel, gasoline and lubricant oils
– from 1,040 to 10,350 litres.
They offer a flexible solution for storing combustible liquids
while improving fuel dispensing and management. Their
practical design ensures fast, easy, and convenient installation
in any outdoor location.
HEDRA TANKS ARE A VALUE-ENGINEERED
FUEL STORAGE SOLUTION
These mobile and modular units ensure fast, easy transport
ation to site, are easily relocatable, and require minimal site
preparation. Their place-fill-and-pump installation process
delivers versatility and rapid commissioning on site.
The freestanding ‘cube style’ design provides complete 360°
access for tank viewing and inspections. High-grade paint
finish ensures enhanced durability in harsh environments.
PRACTICAL AND DURABLE DESIGN WITH
DOUBLE-WALL CONTAINMENT FOR ADDED
SAFETY AND SECURITY.
Our double-walled tanks are designed as integral secondary
containment and therefore do not require independent
bunds for leak containment. Double-walled tank = SFL
primary tank + interstitial space + secondary external tank.
HEDRA TANK SPECIFICATIONS
| MODEL | SFL Litres | CAPACITY Litres | LENGTH mm | WIDTH mm | HEIGHT mm | TARE kg | BAFFLE |
|---|---|---|---|---|---|---|---|
| HEDRA 1000 | 1,040 | 1,095 | 1,374* | 1,086 | 1,270 | 674 | YES |
| HEDRA 2000 | 2,000 | 2,100 | 2,294* | 1,086 | 1,270 | 1,014 | YES |
| HEDRA 3300 | 3,050 | 3,230 | 2,294* | 1,546 | 1,270 | 1,210 | YES |
| HEDRA 4500 | 4,500 | 4,275 | 2,294* | 2,130 | 1,305 | 1,523 | YES |
| HEDRA 5500 | 5,150 | 5,420 | 2,496* | 2,294 | 1,270 | 1,653 | YES |
| HEDRA 6600 | 6,180 | 6,500 | 2,966* | 2,294 | 1,270 | 1,875 | YES |
| HEDRA 8800 | 8,250 | 8,700 | 3,916* | 2,294 | 1,270 | 2,408 | YES |
| HEDRA 11000 | 10,350 | 10,900 | 4,876* | 2,294 | 1,270 | 2,786 | YES |
